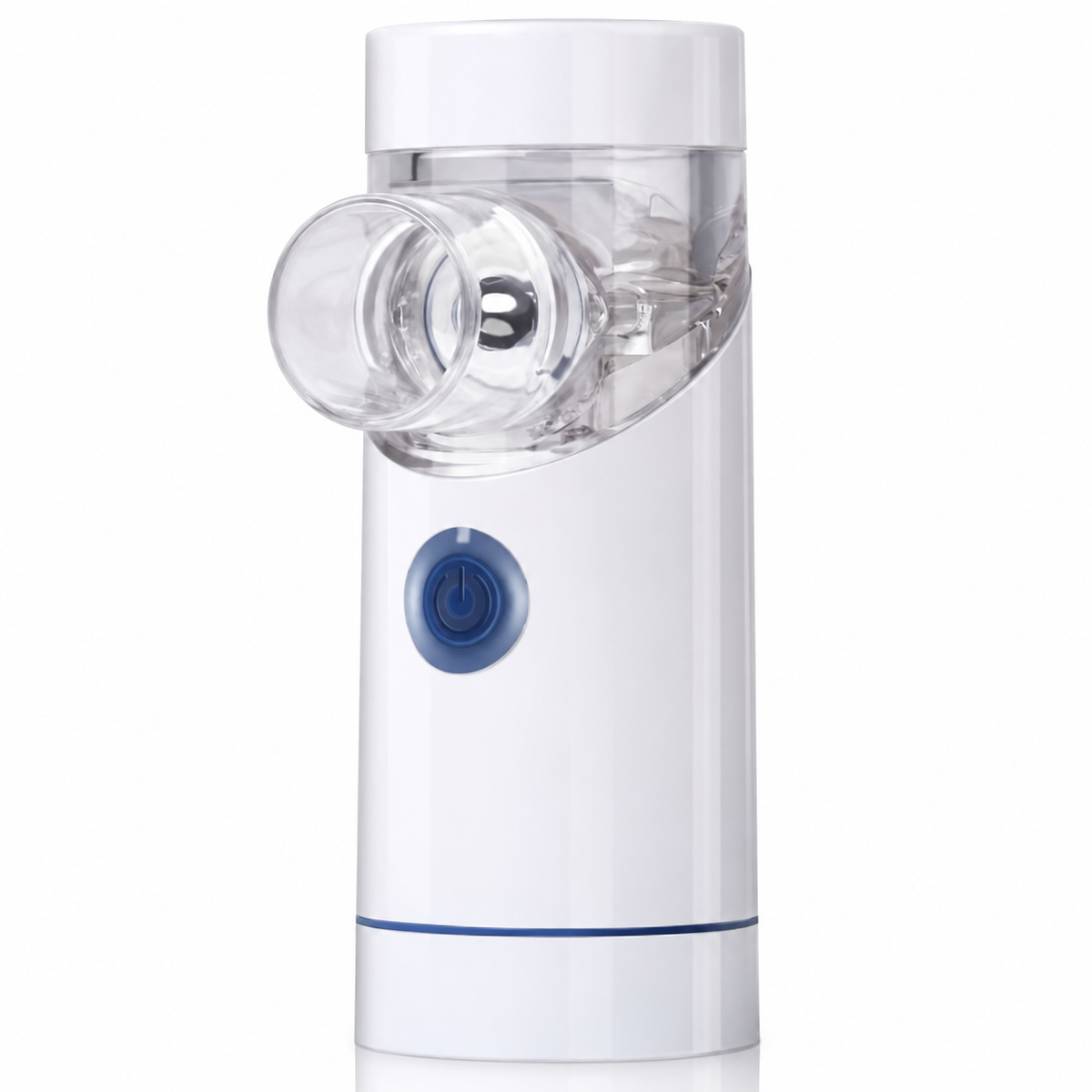

Sipye Children's mini handheld Atomizer

1. The atomizer is mainly composed of piezoelectric components, which are driven by the frequency oscillation of the circuit, and the piezoelectric components are converted into mechanical energy and produced.

1Ultrasonic vibration, the shock wave squeezes the liquid in the cup, makes the liquid atomize the liquid through the atomized pores, and sprays out from the atomization for the user to make.

2. Scope: Aerosolized drugs.

Product characteristics and indicators:

1. Power supply: 3.7V DC (lithium battery), external power supply voltage: AC 220V ± 22V

2. The most atomization rate: 0.35mL / min

3. Residual liquid volume: ≤0.1mL

4. Equivalent volume particle size distribution: median particle size ≤5.0um

5. Noise: ≤40dB (A)

6. Ultrasonic oscillation frequency: 110 ± 10% kHz

7, working time: 60 to 90 minutes (when the lithium battery is fully charged)

8. Net weight: about 100g (including lithium battery)

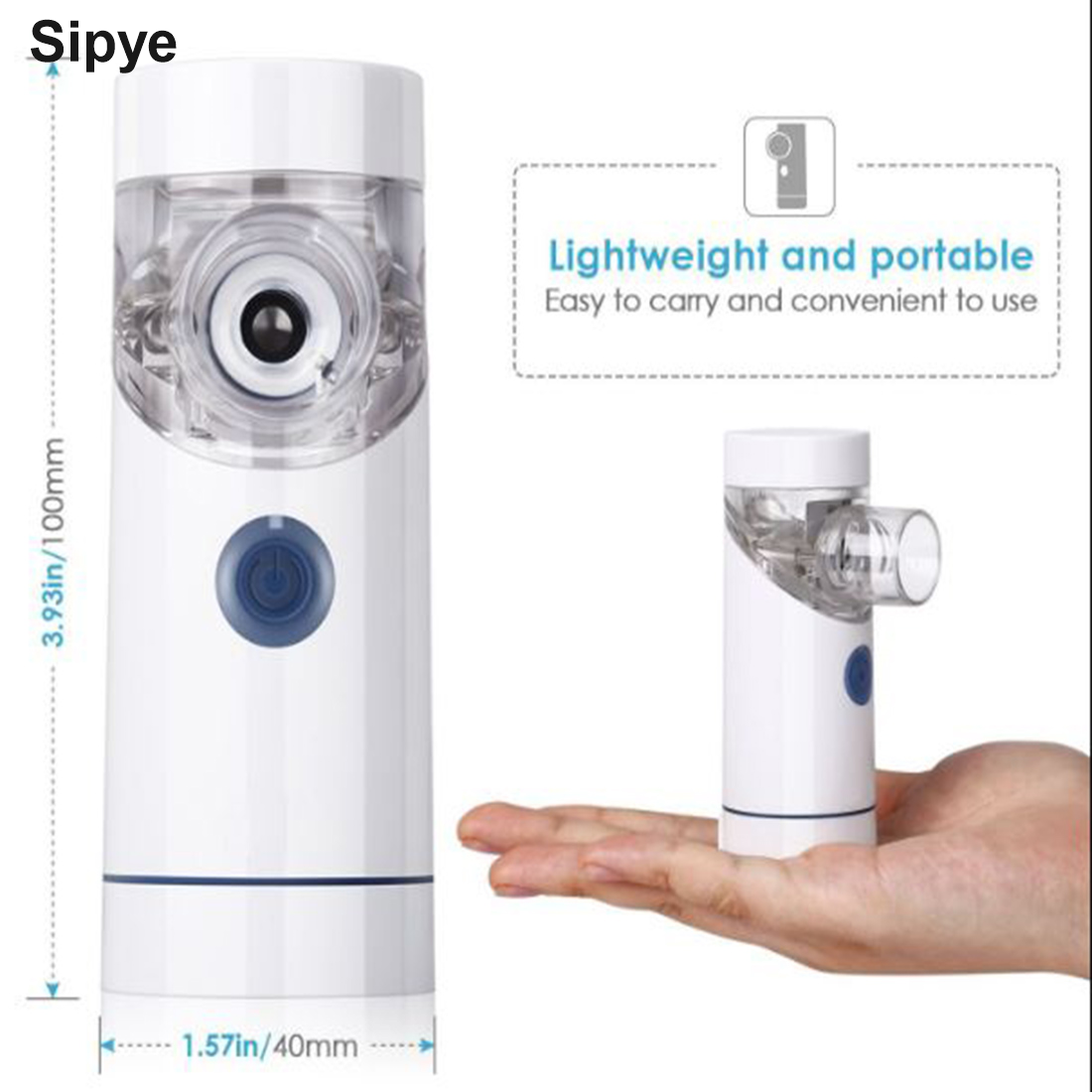

9. Size: 55 * 40 * 114 (mm)

10. Ingress protection level: This machine is an IPXI drip-proof device

13. Movement mode: continuous movement

14. Normal operating conditions: Ambient temperature range: 5--40 ℃ Relative humidity range: ≤80%, pressure range: 860hPa-1060hPa.
