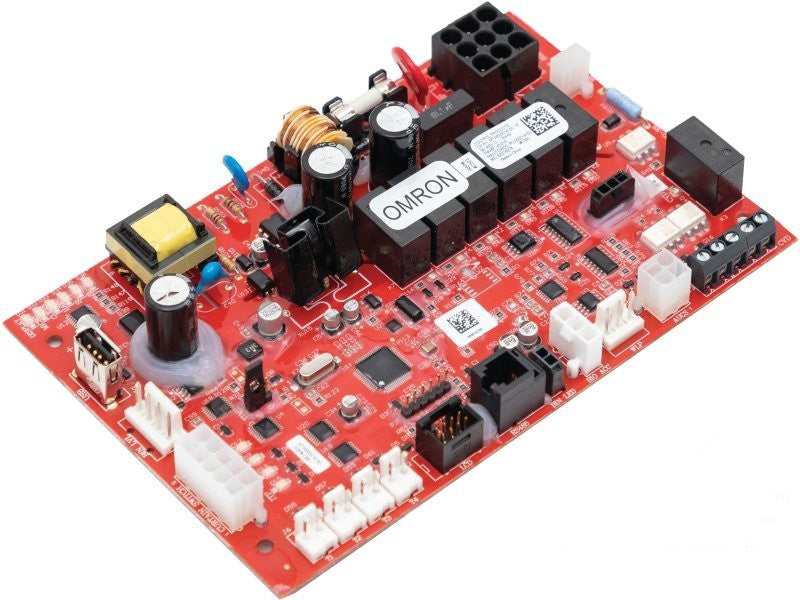

Manitowoc Ice 000008309 Control Board - Setup Required - Indigo ID Series

Shipping: For orders within the U.S., the item ships with free domestic shipping and arrives in approximately three days; for other countries, it primarily ships from mainland China.

Version: A8-1, setup required. This board must be configured or debugged for the specific compatible machine after installation.

Notice: For first-time use: Please equip the back of the motherboard with a CR2032 coin cell battery. Alternatively, you can use the original battery or a new battery.

Manitowoc 000008309 replacement control board with instructions for select Indigo I, IB, ID, IR and IY commercial ice machines. Confirm part number, model, serial number and board configuration before ordering.

Part Details

• Part number: 000008309
• Product type: Ice machine control board
• Brand compatibility: Manitowoc Ice
• Primary family: Indigo ID Series

Compatible Models

ID-Series, I0300, I0322, I0450, I0450P, I0500, I0522, I0522P, I0600, I0600P, I0606, I0680C, I0686C, I0850, I0870C, I0906, I0970C, I0976C, I1000, I1000M, I1000P, I1070C, I1106, I1106C, I1176C, I1200, I1400, I1400M, I1400P, I1406, I1406M, I1406P, I1470C, I1800, I1800M, I1800P, I1870C, I2170C, I2176C, I600M, I606M, I606P, I906M, I906V, IB0682DC, IB0684YC, IB0690C, IB0694YC, IB0696C, IB0696YC, IB0890C, IB0894YC, IB0896YC, IB1090C, IB1094YC, IB1096YC, ID0302A, ID0302A161, ID0303W, ID0306A, ID0306W, ID0322A, ID0323W, ID0452A, ID0453W, ID0456A, ID0456W, ID0502A, ID0503W, ID0521A, ID0522A, ID0523W, ID0592N, ID0602A, ID0602AP, ID0603W, ID0603WM, ID0603WP, ID0606A, ID0606A261, ID0606W, ID0606WM, ID0682C, ID0686C, ID0692N, ID0692NP, ID0696N, ID0852A, ID0853W, ID0856A, ID0856W, ID0876C, ID0892N, ID0896N, ID0906A, ID0906W, ID0976C, ID0996N, ID1002A, ID1002A-261X, ID1003W, ID1003WM, ID1006A, ID1006W, ID1006WM, ID1072C, ID1076C, ID1092N, ID1096N, ID1106A, ID1106W, ID1176C, ID1196N, ID1202A, ID1203W, ID1206A, ID1206W, ID1402A, ID1403W, ID1403WM, ID1406A, ID1406W, ID1406WM, ID1476C, ID1492N, ID1496N, ID1802A, ID1803W, ID1803WM, ID1806A, ID1806W, ID1806WM, ID1872C, ID1876C, ID1892N, ID1896N, ID2172C, ID2176C, IDO906A-261X, IR0500A, IR0501W, IR0520A, IR0521W, IR0522W, IR0590N, IR0850A, IR0851W, IR0856A, IR0856W, IR0870C, IR0890N, IR0896N, IR0906A, IR0906W, IR0996N, IR1800A, IR1801W, IR1806A, IR1806W, IR1890N, IR1896N, IY0304A, IY0305W, IY0306A, IY0306W, IY0324A, IY0325W, IY0454A, IY0455W, IY0456A, IY0456W, IY0504A, IY0505W, IY0524A, IY0525W, IY0525W-161X, IY0594N, IY0604A, IY0604AP, IY0605W, IY0605WM, IY0605WP, IY0606A, IY0606W, IY0606WM, IY0684C, IY0686C, IY0694N, IY0694NP, IY0696N, IY0854A, IY0855W, IY0856A, IY0856W, IY0874C, IY0876C, IY0894N, IY0896N, IY0906A, IY0906W, IY0976C, IY0996N, IY1004A, IY1005W, IY1006A, IY1006W, IY1074C, IY1076C, IY1094N, IY1096N, IY1106A, IY1106W, IY1176C, IY1196N, IY1204A, IY1205W, IY1206A, IY1206W, IY1404A, IY1405W, IY1406A, IY1406W, IY1406WM, IY1474C, IY1474C-161, IY1476C, IY1494N, IY1496N, IY1804A, IY1805W, IY1805WM, IY1806A, IY1806W, IY1806WM, IY1874C, IY1876C, IY1894N, IY1896N, IY2174C, IY2176C, IYO906A-261, IYP0324A, IYP0504A, Id0872c, S2170C, SD1402AP, SD1403WP, SD1492NP, SD1802AP, SD1803WP, SD1892NP, SR1800AP, SR1801WP, SR1890NP, SY1404AP, SY1405WP, id1472c.

Fitment Guidance

Confirm 000008309 on the original board and verify model, serial number, board revision, connectors and mounting points. Similar Indigo machines may use different control boards.

Function

The board manages key ice-machine operating sequences and electronic control functions. Replace it only after proper diagnosis confirms board failure.

Before Ordering

1. Match part number 000008309.
2. Locate the exact model above.
3. Compare connectors and board layout.
4. Contact us with model, serial number and photos if uncertain.

Installation

Installation should be performed by a qualified commercial refrigeration technician. Disconnect power and follow Manitowoc service procedures.
